Paired Pulse protocols usually require two stimulators connected to one coil. These systems are typically not capable of emitting repetitive protocols.

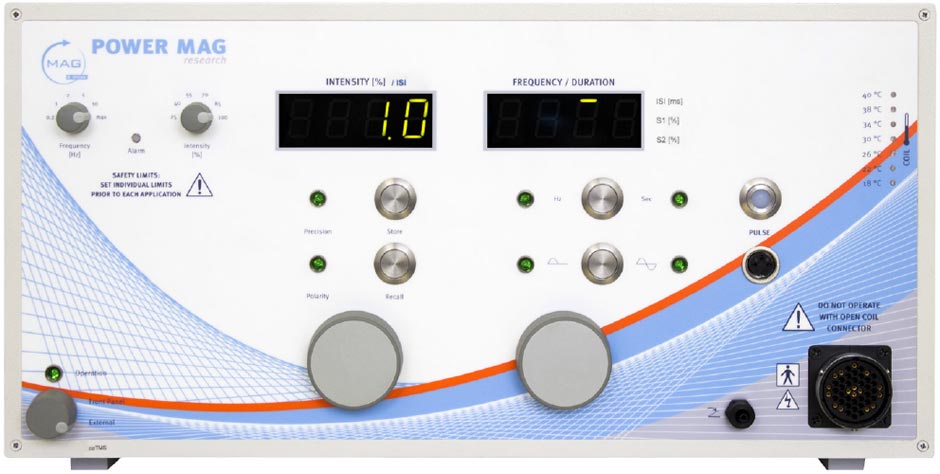

The PowerMAG EEG ppTMS* is a stand-alone rTMS device which can emit various ppTMS protocols and rTMS protocols within one rTMS machine by actively recharging between conditioning (S1) and test pulse (S2).
no second device or "option" needed thanks to MAG&More's ppTMS technology
Powerful rTMS and ppTMS with biphasic pulses in one device
Pulse pairs (ISI as low as 1 ms)
Adjustable pulse pairs in 0.1 ms steps (ISI)
Adjustable intensity of conditioning (S1) and test pulse (S2)
no decrease of pulse intensity during stimulation
100% intensity up to 15 Hz
70% intensity from 15 Hz to 100 Hz
Theta-Burst-Stimulation
High-speed sync out interface
Current direction in the coil invertible
| Technical Specifications | PowerMAG EEG ppTMS* |
|---|---|
| Maximal frequency in burst | 100 Hz |
| Minimal frequency | 0.1 Hz |
| Minimal ISI | 1 ms |
| ISI minimal change value | 0.1 ms |
| Frequency minimal change value | 0.1 Hz |
| Maximal frequency @ 100% intensity | 15 Hz |
| Maximal intensity | 100% (15 Hz), 70% (25 Hz) |
| STIMULATION PARAMETERS | |
| Magnetic induction | up to 4 tesla (depending on coil) |
| Maximum pulse power | 160 Joule |
| Pulse shapes | Full sine-wave |
| Current direction in the coil | Invertible on the equipment |
| Rest time of the stimulation pulse | 40 µs (PA) |
| Pulse duration | 160 µs |
| INPUT/OUTPUT INTERFACE | |
| Trigger input | BNC-connector (TTL pulse, active high) |
| Trigger output | BNC-connector (TTL pulse, active high) |
| External interface | 8 pole DIN connector (Single pulse, repetitive mode, TBS, ramp, custom stimulation protocols possible) |
| External ppTMS Serial Control | Via USB & PC-Interface (Matlab, Python, Presentation, ...) |
| QUALITY "MADE IN GERMANY" | |
| Number of discharges @ 100% intensity | 2,000,000 |
| Electrical safety | Protection class 1, Type BF |
| Hardware classification to MDD 93/42/EEC | Class IIa |
| Hardware certification | CE 0494 |
| OPERATING PARAMETERS | |
| Power supply voltage | 100/110/120/220/230 V~, 50/60 Hz (PowerUnit possibly necessary) |
| Power consumption | 50 VA in standby mode, 800 VA nominal rating, 2000 VA |
| Operating Temperature | 0 °C to +40 °C |
| Dimensions | 490 x 260 x 600 mm (width, height, depth) |
| Weight | 38 kg |
Items marked with* are investigational devices and for research use only. CAUTION - Investigational Device. Limited by Federal (or United States) law to investigational use.
